MSI PRO H610M‑E DDR5 LGA 1700 Micro‑ATX Motherboard
Motherboards
149.00 ₼
In Stock
Specifications
| Brand: | MSI |
| Max Memory Frequency, MHz: | 5600 MHz |
| Min Memory Frequency, MHz: | 4800 MHz |
| CPU Support: | Intel Core 12th/13th/14th Gen, Pentium® Gold, Celeron® |
| Max Memory Capacity, GB: | 96 GB |
| Memory Type: | DDR5, Dual‑Channel |
| Chipset: | Intel H610 |
| Warranty: | 12 Ay |
| Purpose: | Ofis, Ev, Oyun |
| Expansion Slots: | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| Multi-GPU Support: | ❌ |
| Hybrid Graphics Support: | via CPU iGPU |
| M.2 Slot: | 1× M.2 PCIe 3.0 x4/SATA |
| VGA Port: | Bəli |
| PCI Version: | PCIe 4.0 / PCIe 3.0 |
| Features: | Memory Boost, Core Boost, Steel Armor |
| Bluetooth Standard: | ❌ |
| Buffered Memory: | ❌ |
| Memory Mode: | Dual‑Channel |
| PCIe x1 Version: | PCIe 3.0 |
| PCIe x16 Version: | PCIe 4.0 |
| PCIe x4 Version: | - |
| PCIe x8 Version: | - |
| LAN Ports: | 1 |
| Ethernet, Gb/s: | 1 Gb/s |
| Audio 3.5 mm: | 7.1 Realtek ALC897 |
| Nvidia SLI Support: | ❌ |
| Onboard Audio: | Bəli |
| Connector Types: | HDMI, VGA, USB, LAN, Audio |
| SATA Ports: | 4 |
| AMD/ATI CROSSFIRE Support: | ❌ |
| DisplayPort: | ❌ |
| Mini DisplayPort: | ❌ |
| USB-C Port: | ❌ |
| HDMI Port: | Bəli, 1.4 (4K@30 Hz) |
| DVI Port: | ❌ |
| Wi-Fi Standard: | ❌ |
| PCI Slots: | Bəli |
| Interfaces: | USB 2.0, USB 3.2 Gen1, LAN, HDMI, VGA, Audio |
| Lighting Type: | ❌ |
| Package: | Platanın özü, I/O shield, SATA kabelləri, sənədlər |
| Memory Slots: | 2 |
| Made in: | China |
| Form Factor: | Micro‑ATX |
| Brand Country: | Taiwan |
Product Description

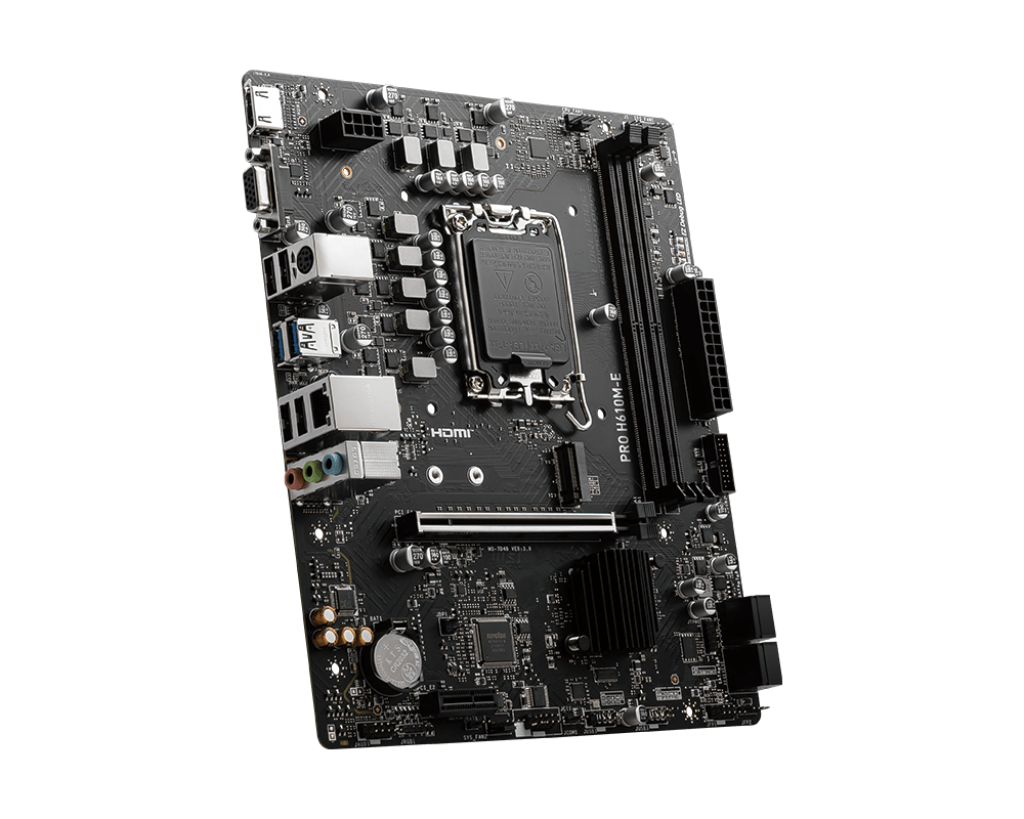

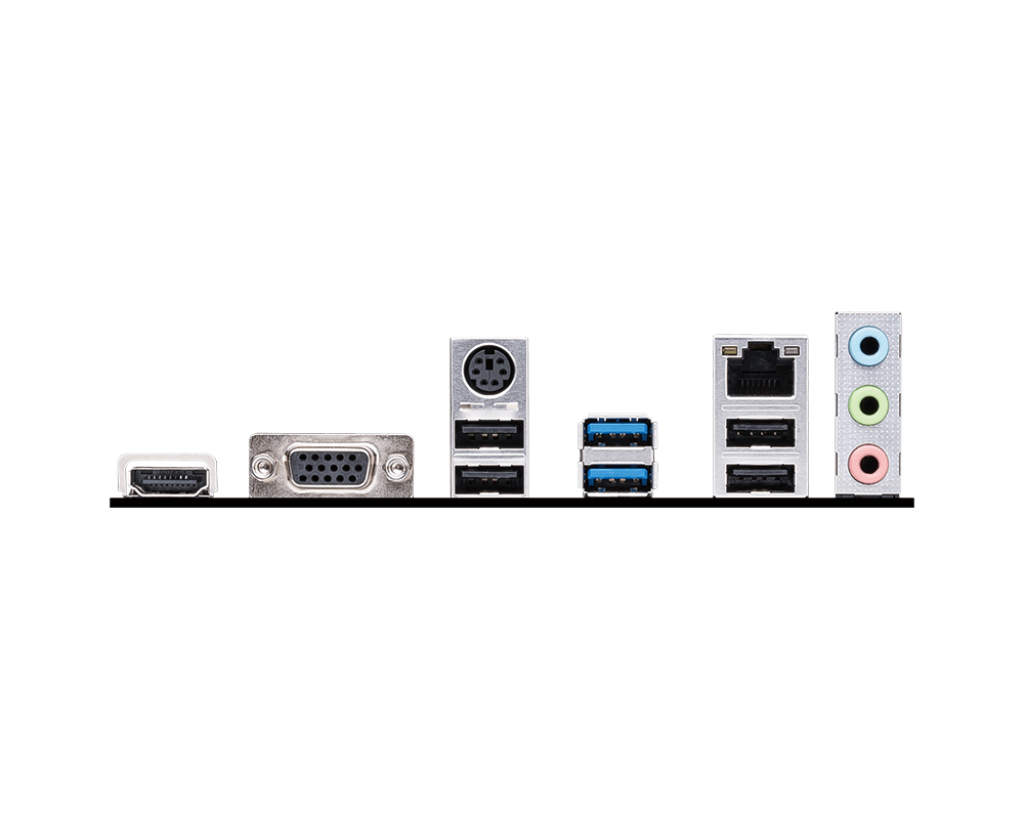

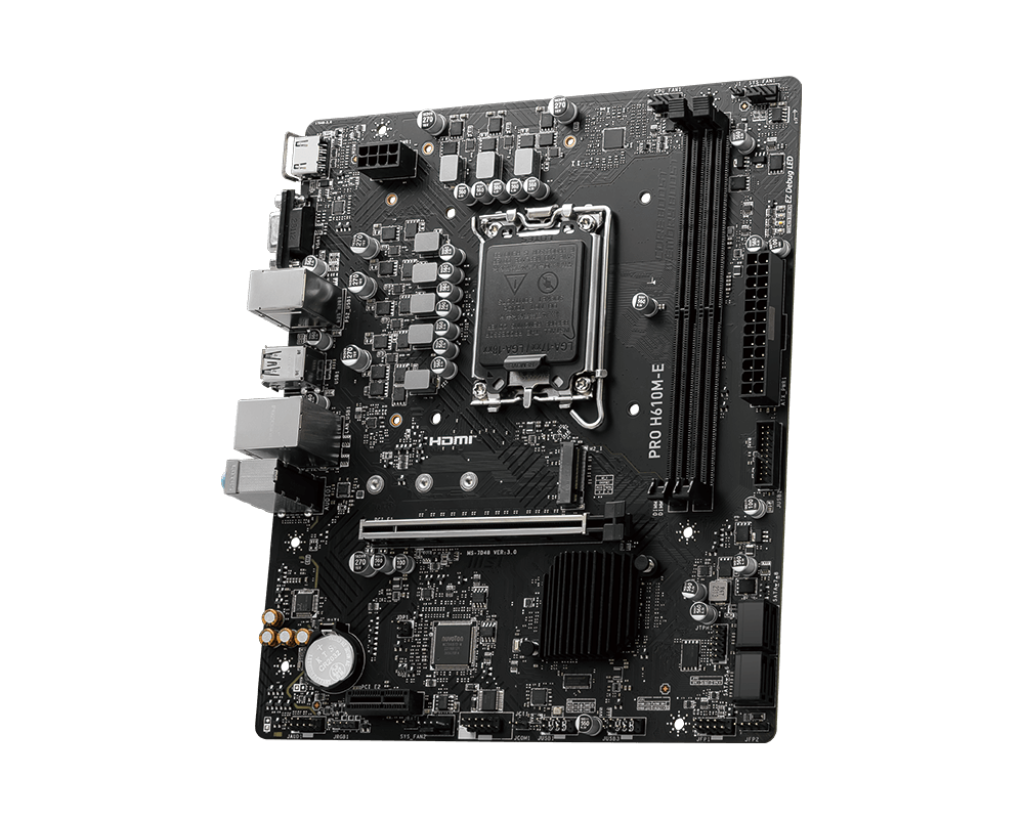

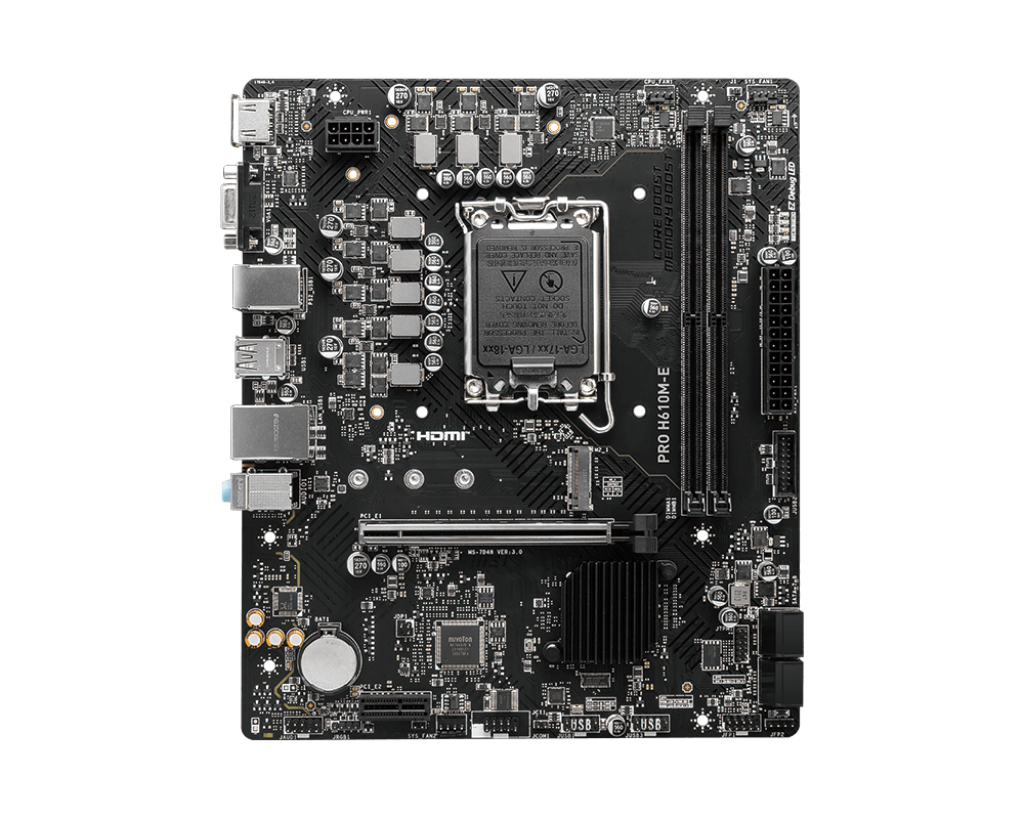

The MSI PRO H610M‑E DDR5 is a reliable Micro‑ATX motherboard designed for Intel LGA 1700 platforms. Supports Intel Core 12th/13th/14th Gen, Pentium® Gold, and Celeron® processors. Features two DDR5 DIMM slots supporting up to 96 GB DDR5 5600 MHz memory with Intel XMP 3.0. Video outputs include HDMI 1.4 (4K@30 Hz) and VGA. Expansion slots: 1× PCIe 4.0 x16, 1× PCIe 3.0 x1, plus 1× M.2 PCIe 3.0 x4/SATA and 4× SATA 6 Gb/s ports. Realtek® ALC897 provides 7.1‑channel HD audio, and Realtek® RTL8111H delivers 1 Gbps LAN. USB ports and EZ Debug LED make assembly easy. Ideal for office, home, and budget systems.
Technical Specifications
| Brand | MSI |
| Max Memory Frequency, MHz | 5600 MHz |
| Min Memory Frequency, MHz | 4800 MHz |
| CPU Support | Intel Core 12th/13th/14th Gen, Pentium® Gold, Celeron® |
| Max Memory Capacity, GB | 96 GB |
| Memory Type | DDR5, Dual‑Channel |
| Chipset | Intel H610 |
| Warranty | 12 Ay |
| Purpose | Ofis, Ev, Oyun |
| Expansion Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| Multi-GPU Support | ❌ |
| Hybrid Graphics Support | via CPU iGPU |
| M.2 Slot | 1× M.2 PCIe 3.0 x4/SATA |
| VGA Port | Bəli |
| PCI Version | PCIe 4.0 / PCIe 3.0 |
| Features | Memory Boost, Core Boost, Steel Armor |
| Bluetooth Standard | ❌ |
| Buffered Memory | ❌ |
| Memory Mode | Dual‑Channel |
| PCIe x1 Version | PCIe 3.0 |
| PCIe x16 Version | PCIe 4.0 |
| PCIe x4 Version | - |
| PCIe x8 Version | - |
| LAN Ports | 1 |
| Ethernet, Gb/s | 1 Gb/s |
| Audio 3.5 mm | 7.1 Realtek ALC897 |
| Nvidia SLI Support | ❌ |
| Onboard Audio | Bəli |
| Connector Types | HDMI, VGA, USB, LAN, Audio |
| SATA Ports | 4 |
| AMD/ATI CROSSFIRE Support | ❌ |
| DisplayPort | ❌ |
| Mini DisplayPort | ❌ |
| USB-C Port | ❌ |
| HDMI Port | Bəli, 1.4 (4K@30 Hz) |
| DVI Port | ❌ |
| Wi-Fi Standard | ❌ |
| PCI Slots | Bəli |
| Interfaces | USB 2.0, USB 3.2 Gen1, LAN, HDMI, VGA, Audio |
| Lighting Type | ❌ |
| Package | Platanın özü, I/O shield, SATA kabelləri, sənədlər |
| Memory Slots | 2 |
| Made in | China |
| Form Factor | Micro‑ATX |
| Brand Country | Taiwan |
