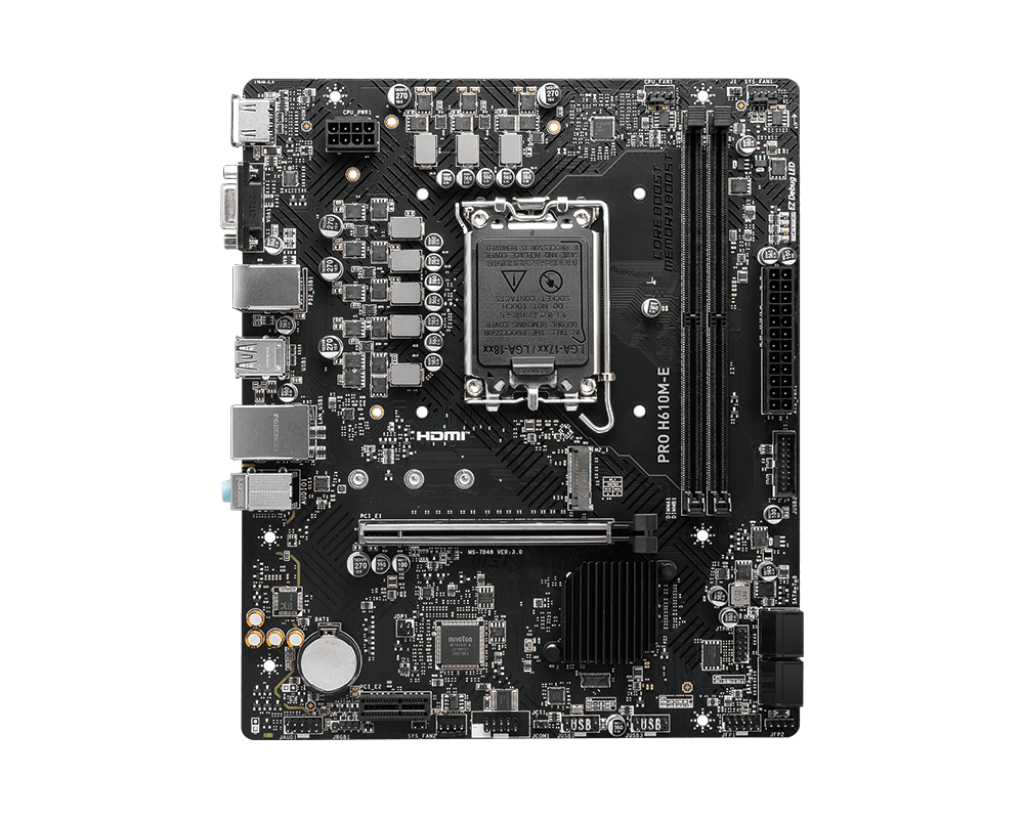

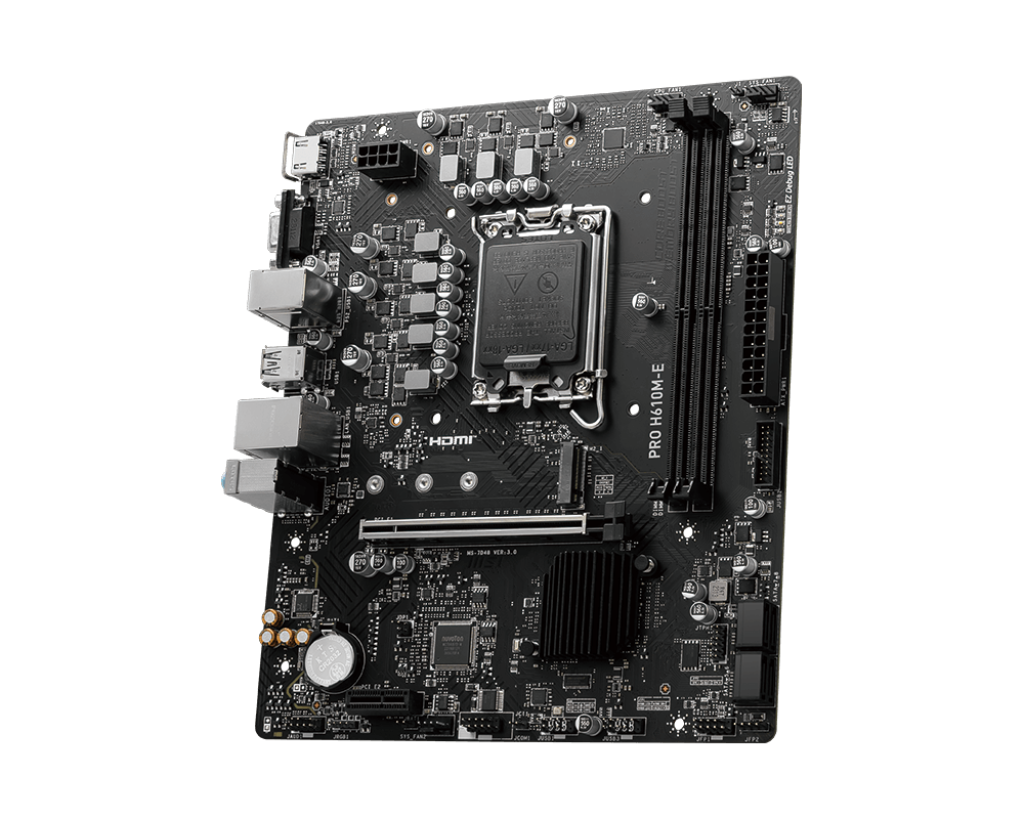

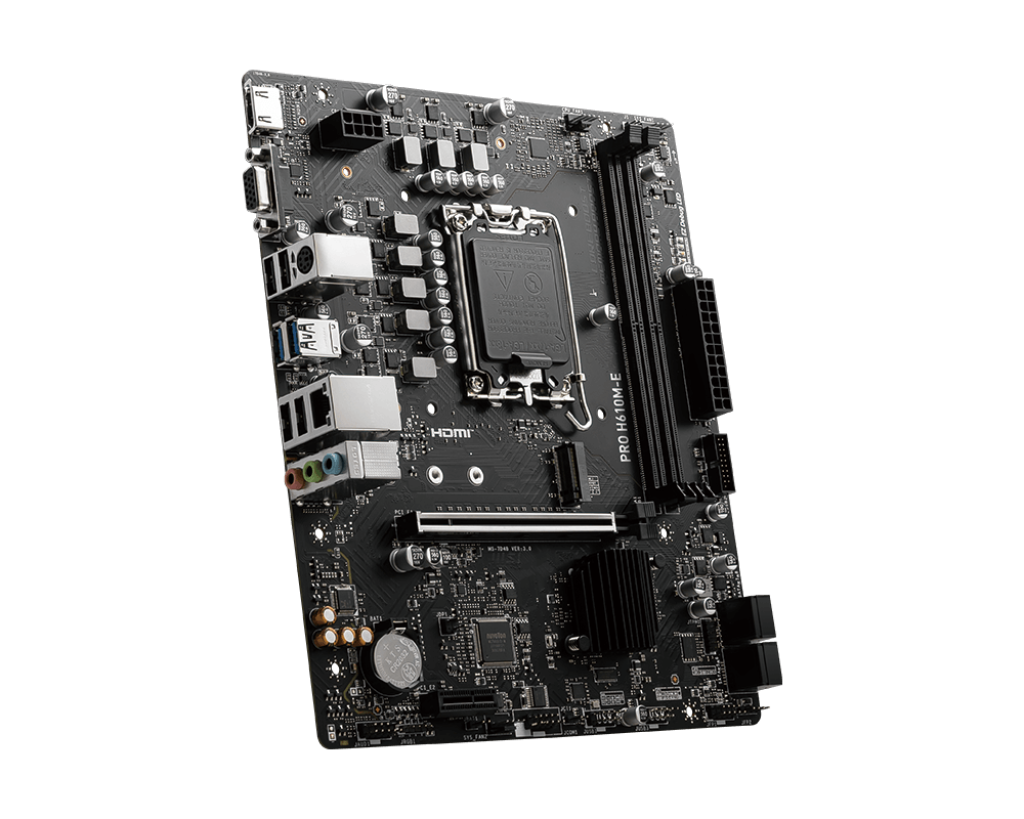

MSI PRO H610M-E DDR5 Motherboard (LGA1700, mATX)
Motherboards
149.00 ₼
In Stock
Specifications
| Brand: | MSI |
| Chipset: | INTEL H610 |
| CPU: |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory: |
2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics: |
1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot: |
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Audio: |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage: |
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB: |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN (Local Area Network): | Realtek® RTL8111H Gigabit LAN |
| Internal I/O: |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE: | 4x EZ Debug LED |
| OPERATING SYSTEM: | Support for Windows® 11 64-bit, Windows® 10 64-bit |

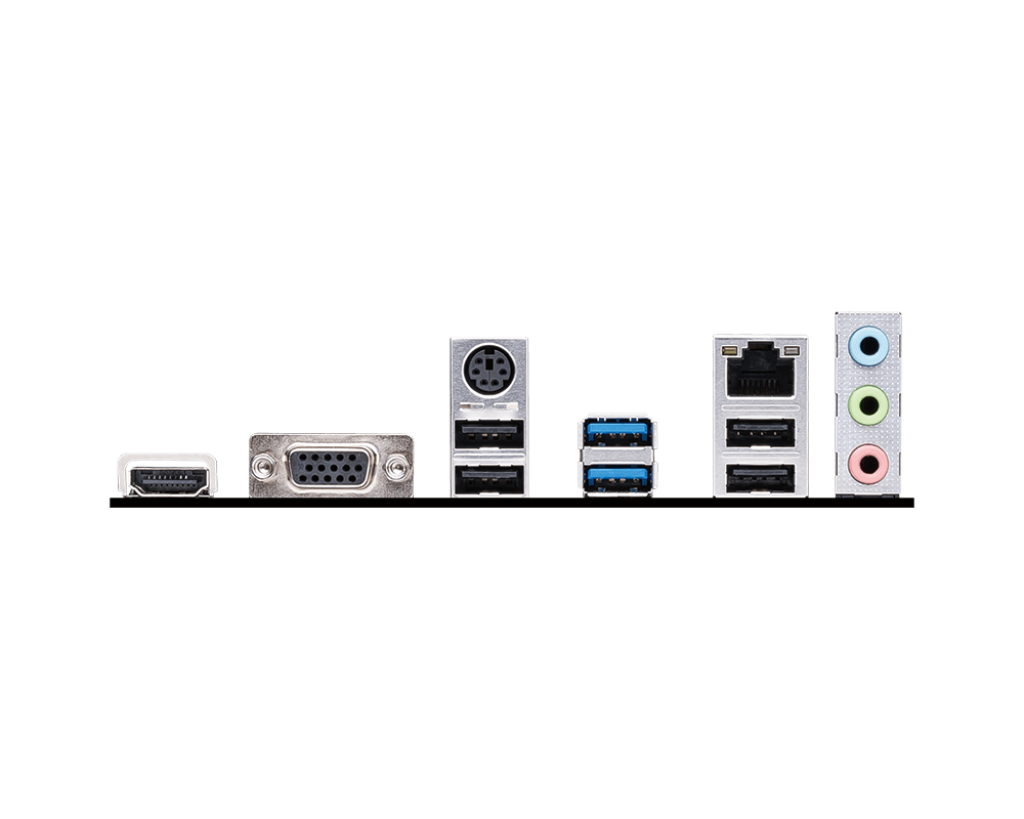

| BACK PANEL PORTS: |
HDMI™ VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A LAN port Audio Connectors USB 2.0 USB 2.0 |
| Weight: | 12 Ay |
Product Description
High-performance MSI PRO H610M-E DDR5 motherboard supporting 14th, 13th, and 12th Gen Intel Core processors. Features DDR5 memory support up to 5600MHz (96GB max), PCIe 4.0 slot, M.2 NVMe support, and 4K HDMI output. Reliable business-class solution in a compact mATX form factor.
Technical Specifications
| Brand: | MSI |
| Chipset: | INTEL H610 |
| CPU: | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory: | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics: | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot: | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Audio: | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage: | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB: | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN (Local Area Network): | Realtek® RTL8111H Gigabit LAN |
| Internal I/O: | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE: | 4x EZ Debug LED |
| OPERATING SYSTEM: | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BACK PANEL PORTS: | HDMI™ VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A LAN port Audio Connectors USB 2.0 USB 2.0 |
| Weight: | 12 Ay |
